Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

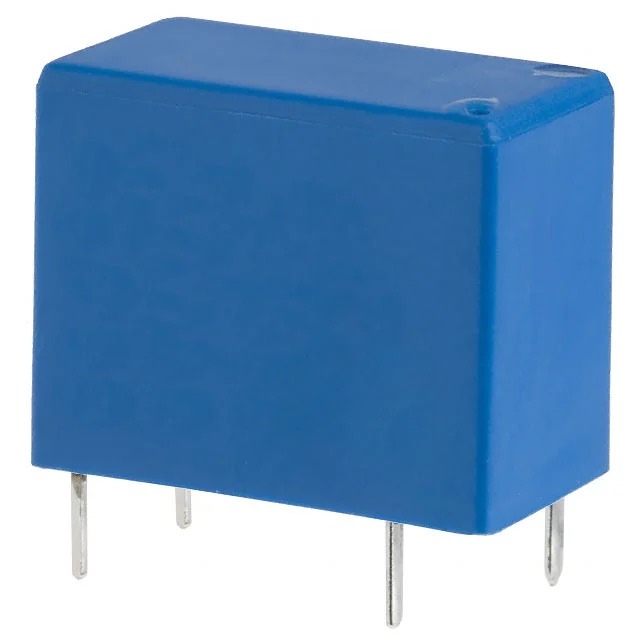

| Mfr | TE Connectivity Potter & Brumfield Relays |
| Series | OJE, OEG |
| Packaging | Bulk |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 5 A |
| Switching Voltage | 277VAC, 30VDC – Max |
| Load – Max Switching | 1385VA, 150W |
| Coil Current | 37.5 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | Sealed – Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 10 ms |
| Release Time | 4 ms |
| Operating Temperature | -30°C ~ 85°C |
| Contact Material | Silver (Ag) |
| Approval Agency | CQC, cULus, TUV, VDE |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 320 Ohms |
| Base Product Number | OJE-SH |
