Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

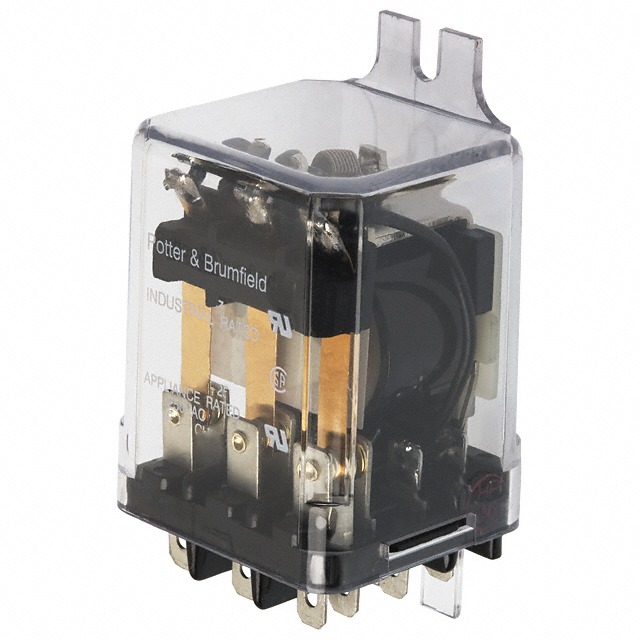

| Mfr | TE Connectivity Potter & Brumfield Relays |
| Series | KUP |
| Packaging | Bulk |
| Part Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 240VAC – Max |
| Load – Max Switching | 2400VA |
| Coil Current | 100 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | Quick Connect – 0.187″ (4.7mm) |
| Seal Rating | – |
| Coil Insulation | Class B |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | – |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -45°C ~ 70°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 120 Ohms |
| Base Product Number | KUP-5D |
