Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

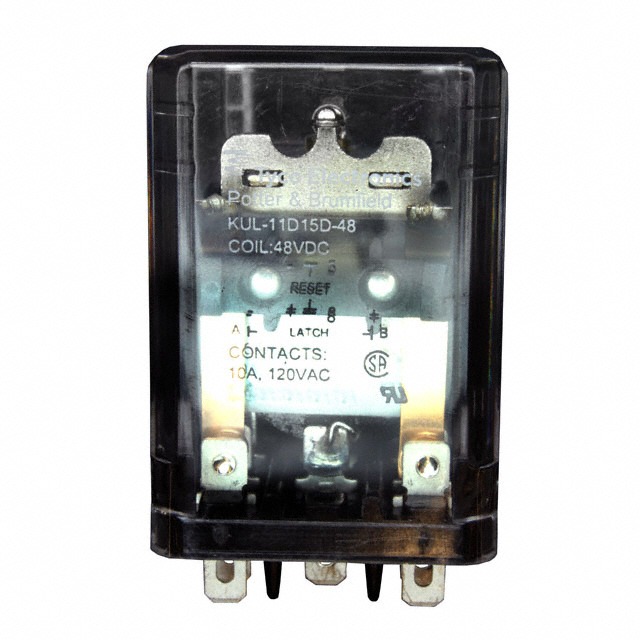

| Mfr | TE Connectivity Potter & Brumfield Relays |
| Series | KUL |
| Packaging | Bulk |
| Part Status | Active |
| Mounting Type | Socketable |
| Coil Voltage | 48VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 240VAC – Max |
| Load – Max Switching | 2400VA |
| Coil Current | 34.3 mA |
| Coil Type | Latching, Dual Coil |
| Features | – |
| Termination Style | Plug In, Quick Connect – 0.187″ (4.7mm) |
| Seal Rating | – |
| Coil Insulation | Class B |
| Must Operate Voltage | 36 VDC |
| Must Release Voltage | – |
| Operate Time | 25 ms |
| Release Time | 25 ms |
| Operating Temperature | -45°C ~ 50°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 1.4 kOhms |
| Base Product Number | KUL-11 |
