Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

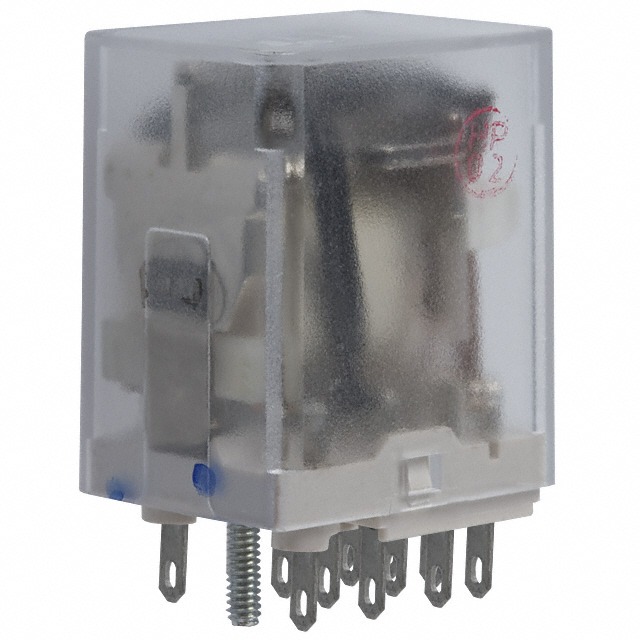

| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | KHU |
| Packaging | Bulk |
| Part Status | Obsolete |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Form | 4PDT (4 Form C) |
| Contact Rating (Current) | 1 A |
| Switching Voltage | 240VAC – Max |
| Load – Max Switching | 240VA |
| Coil Current | 35.4 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | Plug In |
| Seal Rating | – |
| Coil Insulation | Class B |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | – |
| Operate Time | 13 ms |
| Release Time | 6 ms |
| Operating Temperature | -45°C ~ 70°C |
| Contact Material | Silver (Ag), Gold (Au) |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 690 Ohms |
| Base Product Number | KHU-17 |
