Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

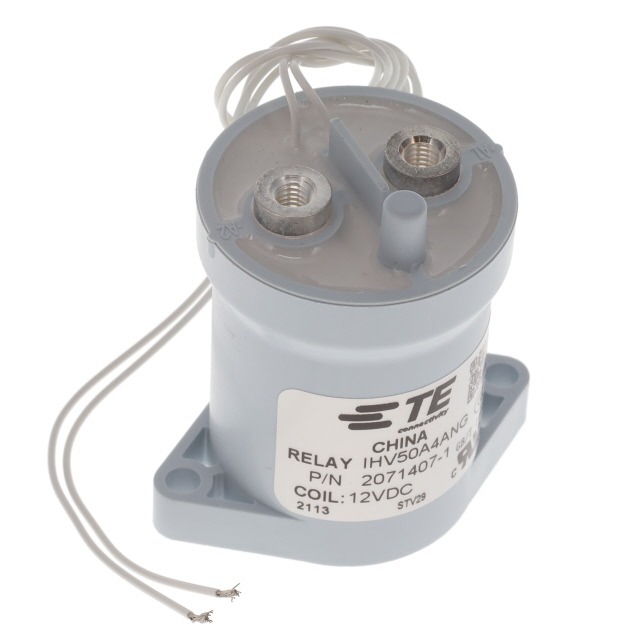

| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | IHV50 |
| Packaging | Box |
| Part Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (DM) (1 Form X) |
| Contact Rating (Current) | 50 A |
| Switching Voltage | 900VDC – Max |
| Features | Sealed – Hermetically |
| Termination Style | Stud, Wire Leads |
| Operating Temperature | -40°C ~ 85°C |
| Must Operate Voltage | 8 VDC |
| Must Release Voltage | 1.2 VDC |
| Contact Material | – |
| Operate Time | 25 ms |
| Release Time | 10 ms |
| Coil Current | 461 mA |
| Coil Power | 5.5W |
| Coil Resistance | 26Ohms |
Değerlendirmeler
Henüz değerlendirme yapılmadı.
