Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

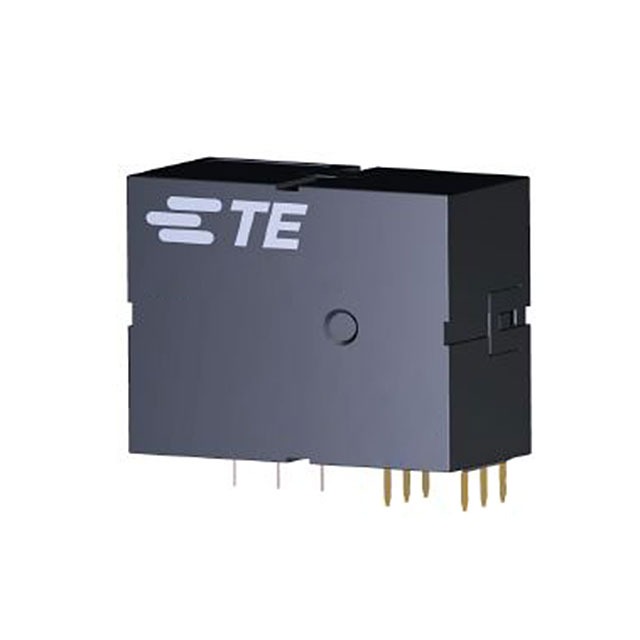

| Mfr | TE Connectivity Potter & Brumfield Relays |
| Series | EW60 |
| Packaging | Tray |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 60 A |
| Switching Voltage | 440VAC – Max |
| Load – Max Switching | 26400VA |
| Coil Current | 250 mA |
| Coil Type | Latching, Dual Coil |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | – |
| Coil Insulation | – |
| Must Operate Voltage | 9.6 VDC |
| Must Release Voltage | – |
| Operate Time | 100 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | UL |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 48 Ohms |
| Base Product Number | EW60-1A |
