| ÖZELLİK | AÇIKLAMA |
|---|---|

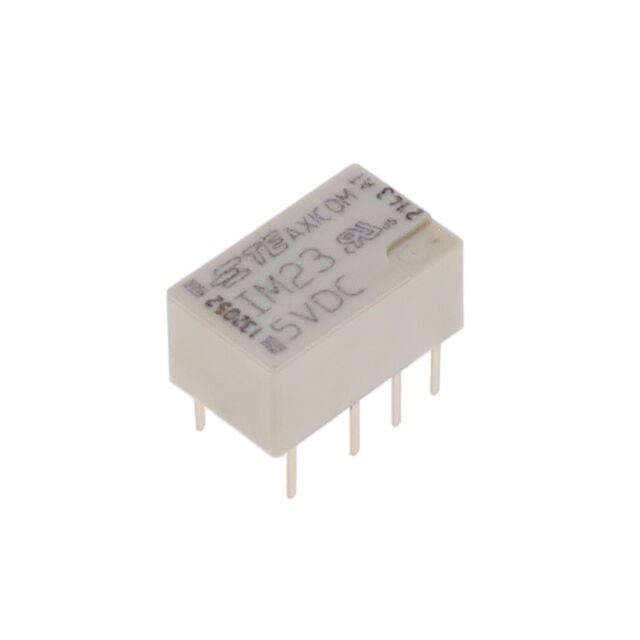

| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | IM, AXICOM |
| Packaging | Tube |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 250VAC, 220VDC – Max |
| Load – Max Switching | 500VA, 440W |
| Coil Current | 10 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | Sealed – Hermetically |
| Coil Insulation | – |
| Must Operate Voltage | 4.25 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 3 ms |
| Release Time | 3 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Palladium (Pd), Ruthenium (Ru), Gold (Au) |
| Approval Agency | UR |
| Relay Type | Telecom |
| Grade | – |
| Qualification | – |
| Coil Resistance | 500 Ohms |
| Base Product Number | 1462039 |
