Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

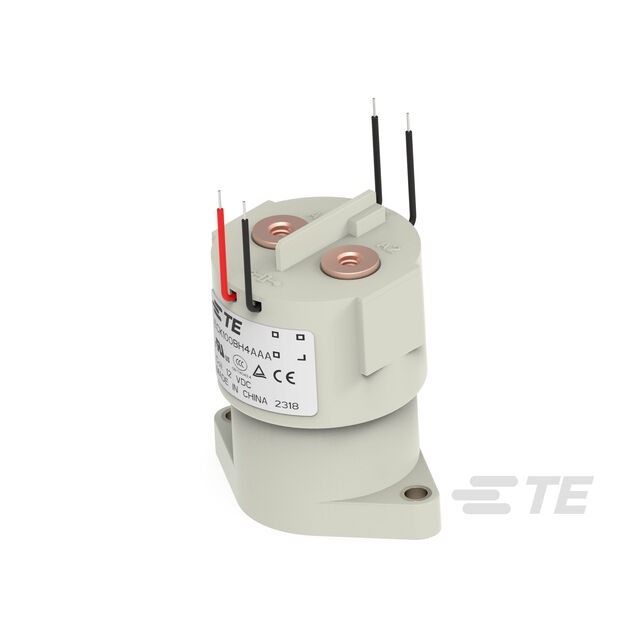

| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | ECK100B |
| Packaging | Box |
| Part Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (DM) (1 Form X) |
| Contact Rating (Current) | 100 A |
| Switching Voltage | 1000VDC – Max |
| Features | Auxiliary Contacts, Sealed – Hermetically |
| Termination Style | Stud, Wire Leads |
| Operating Temperature | -40°C ~ 85°C |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Contact Material | – |
| Operate Time | 30 ms |
| Release Time | 10 ms |
| Coil Current | 462 mA |
| Coil Power | 5.5W |
| Coil Resistance | 25.974Ohms |
