Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

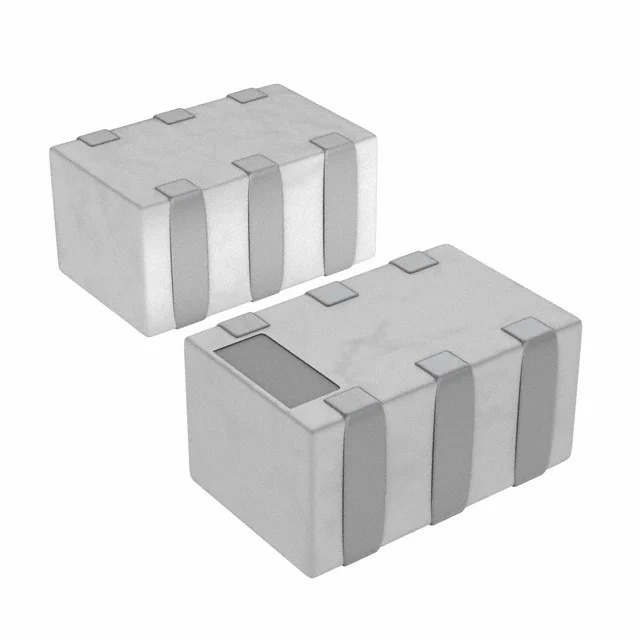

| Manufacturer | TDK Corporation |
| Series | DPX |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Type | Diplexer |
| Frequency Bands (Low / High) | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz |
| Low Band Attenuation (min / max dB) | 20.00dB / 36.00dB |
| High Band Attenuation (min / max dB) | 15.00dB / 28.00dB |
| Return Loss (Low Band / High Band) | 17.0dB / 16.0dB |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric), 6 PC Pad |
