Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

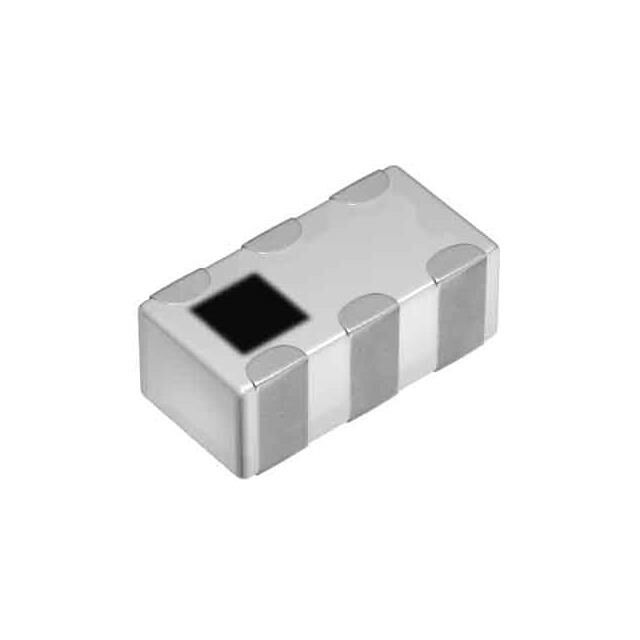

| Manufacturer | TDK Corporation |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Type | Diplexer |
| Frequency Bands (Low / High) | 617MHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.4GHz / 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz |
| Low Band Attenuation (min / max dB) | 20.00dB / 26.20dB |
| High Band Attenuation (min / max dB) | 20.00dB / 24.40dB |
| Return Loss (Low Band / High Band) | – |
| Grade | – |
| Qualification | – |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric), 6 PC Pad |
