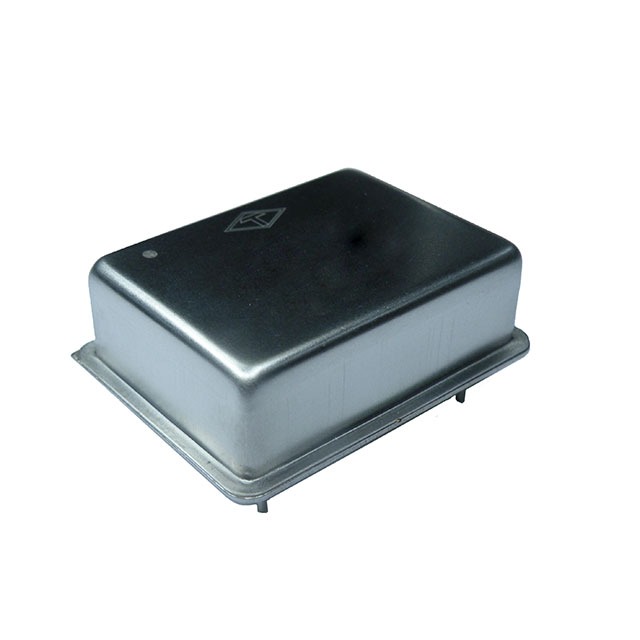

Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Taitien |
| Series | NI-10M-2800 |
| Packaging | Box |
| Part Status | Active |
| Base Resonator | Crystal |
| Type | OCXO |
| Frequency | 10 MHz |
| Function | – |
| Output | LVTTL |
| Voltage – Supply | 12V |
| Frequency Stability | ±5ppb |
| Absolute Pull Range (APR) | – |
| Operating Temperature | -30°C ~ 70°C |
| Current – Supply (Max) | 400mA |
| Ratings | – |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (1.000″, 25.40mm), 5 Leads |
| Size / Dimension | 1.430″ L x 1.070″ W (36.32mm x 27.18mm) |
| Height – Seated (Max) | 0.500″ (12.70mm) |
| Current – Supply (Disable) (Max) | – |
