Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | STMicroelectronics |
| Series | STM32MP2 |
| Packaging | Tray |
| Part Status | Active |
| Core Processor | ARM® Cortex®-A35, ARM® Cortex®-M0+, ARM® Cortex®-M33 |
| Number of Cores/Bus Width | 2, 1, 1 Core, 32-Bit |
| Speed | 1.5GHz |
| RAM Controllers | DDR3L, DDR4, LPDDR4 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | LCD, LVDS, MIPI-CSI2 |
| Ethernet | 10/100/1000Mbps (3) |
| SATA | – |
| USB | USB 2.0 (1), USB 3.0 (1), USB Type-C (1) |
| Voltage – I/O | 1.8V, 3.3V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | – |
| Qualification | – |
| Security Features | ARM TZ, Boot Security, TRNG |
| Mounting Type | Surface Mount |

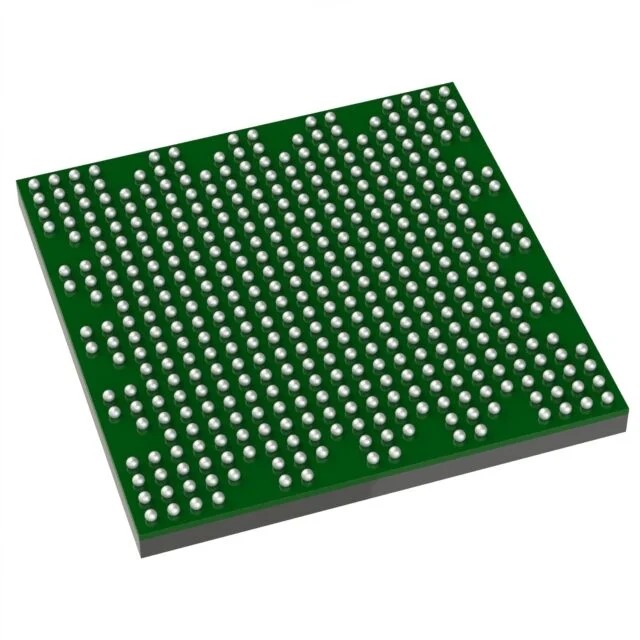

| Package / Case | 436-TFBGA |
| Supplier Device Package | 436-TFBGA (18×18) |
| Additional Interfaces | GPIO, DMA, CANbus, I2C, MMC/SD/SDIO, SPDIF, SPI, UART/USART |
| Base Product Number | STM32MP257 |
