Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | STMicroelectronics |
| Series | STM32MP1 |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Core Processor | ARM® Cortex®-A7 |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Speed | 209MHz, 650MHz |
| Co-Processors/DSP | ARM® Cortex®-M4 |
| RAM Controllers | DDR3, DDR3L, LPDDR2, LPDDR3 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | HDMI-CEC, LCD |
| Ethernet | 10/100Mbps, GbE |
| SATA | – |
| USB | USB 2.0 (2), USB 2.0 OTG+ PHY (3) |
| Voltage – I/O | 2.5V, 3.3V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Security Features | ARM TZ |
| Mounting Type | Surface Mount |

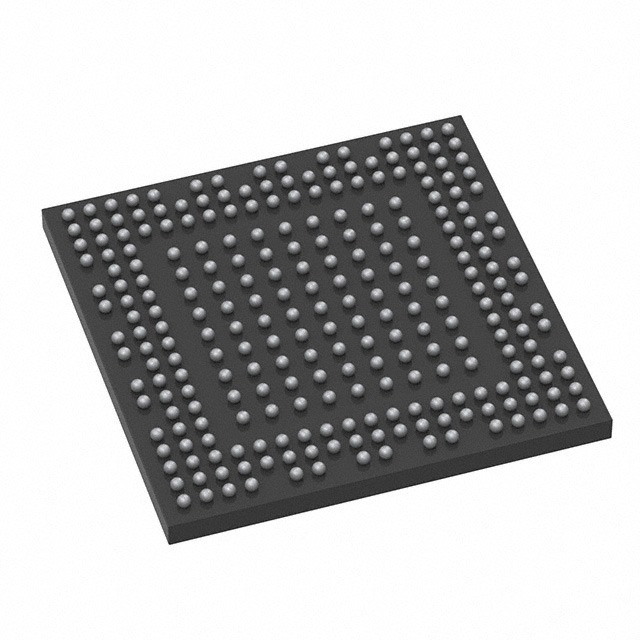

| Package / Case | 257-TFBGA |
| Supplier Device Package | 257-TFBGA (10×10) |
| Additional Interfaces | CAN, Ethernet, I2C, MMC/SD/SDIO, SPDIF, SPI, UART, USB |
| Base Product Number | STM32 |
