Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | STMicroelectronics |
| Series | STM32MP1 |
| Packaging | Tray |
| Part Status | Active |
| Core Processor | ARM® Cortex®-A7 |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 650MHz |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | DDR3, DDR3L, LPDDR2, LPDDR3 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | LCD |
| Ethernet | 10/100/1000Mbps (1) |
| SATA | – |
| USB | USB 2.0 (2) |
| Voltage – I/O | 1.8V, 2.5V, 3.3V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Security Features | AES, ARM TZ, Boot Security, Cryptography, Secure Debug, SHA-1/2, Tamper Detection, TRNG, Volatile key Storage |
| Mounting Type | Surface Mount |

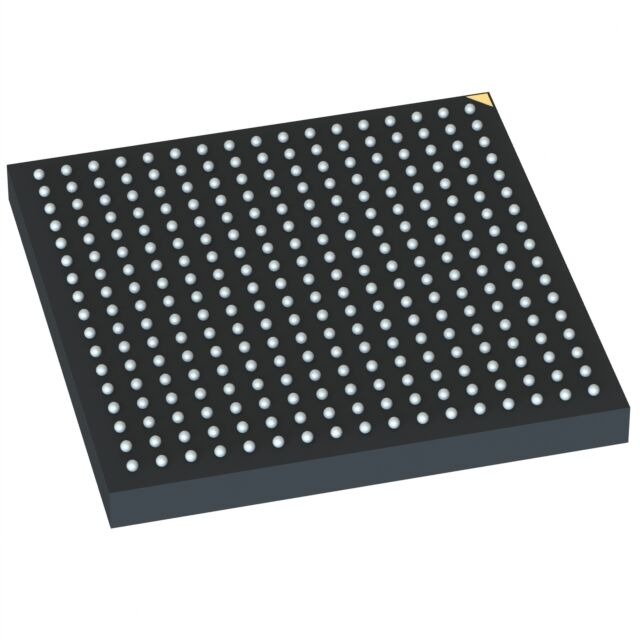

| Package / Case | 289-TFBGA |
| Supplier Device Package | 289-TFBGA (9×9) |
| Additional Interfaces | GPIO, I2C, I2S, IrDA, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB |
