Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | STMicroelectronics |
| Series | STM32H7 |
| Packaging | Bulk |
| Part Status | Active |
| Core Processor | ARM® Cortex®-M4, Cortex®-M7 |
| Core Size | 32-Bit Dual-Core |
| Speed | 240MHz, 480MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 119 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | – |
| RAM Size | 1M x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 28x16b Sigma-Delta; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |

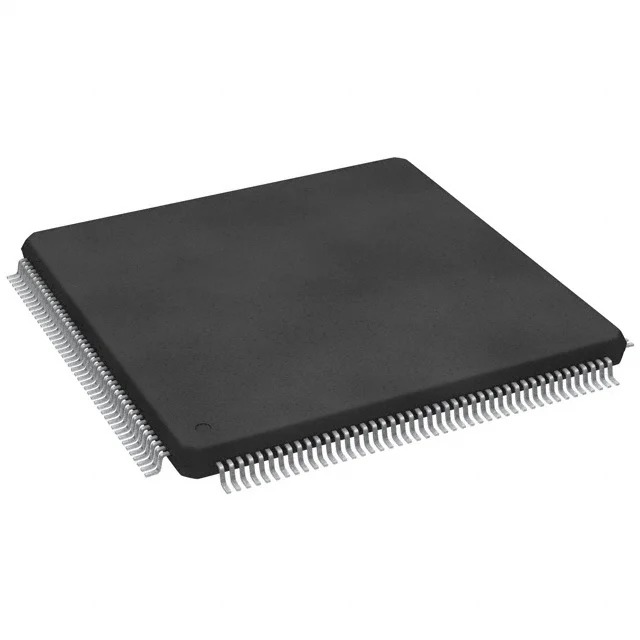

| Supplier Device Package | 176-LQFP (24×24) |
| Package / Case | 176-LQFP |
| Base Product Number | STM32H755 |
