Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | STMicroelectronics |
| Series | STM32H5 |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit |
| Speed | 250MHz |
| Connectivity | CANbus, FIFO, I2C, IrDA, LINbus, SCI, SDIO, SMBus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, PDR, POR, PWM, SHA, TRNG, Voltage Detect, WDT |
| Number of I/O | 57 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | – |
| RAM Size | 640K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 16x12b SAR; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |

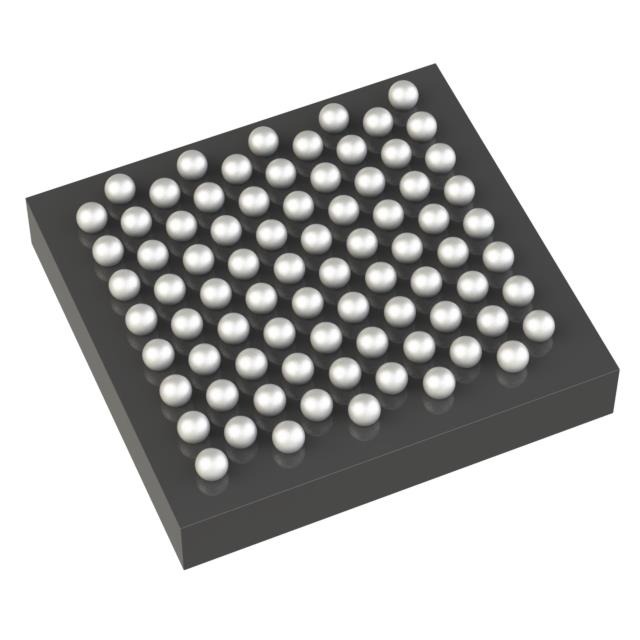

| Supplier Device Package | 80-WLCSP (3.5×3.27) |
| Package / Case | 80-UFBGA, WLCSP |
| Base Product Number | STM32H563 |
