Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | STMicroelectronics |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 5.2Ohm |
| Channel-to-Channel Matching (ΔRon) | 300mOhm |
| Voltage – Supply, Single (V+) | 1.65V ~ 4.3V |
| Voltage – Supply, Dual (V±) | – |
| Switch Time (Ton, Toff) (Max) | 15ns, 13ns |
| -3db Bandwidth | 800MHz |
| Charge Injection | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF |
| Current – Leakage (IS(off)) (Max) | 20nA |
| Crosstalk | -78dB @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |

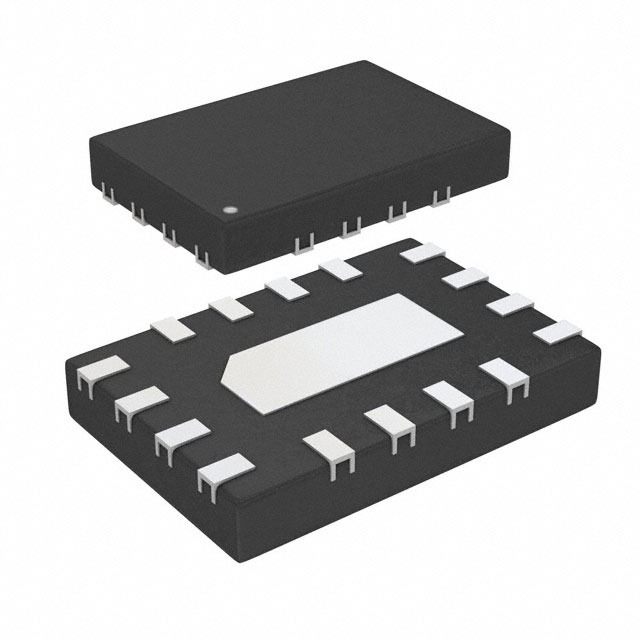

| Package / Case | 16-UFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (2.6×1.8) |
| Base Product Number | STG3692 |
