Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

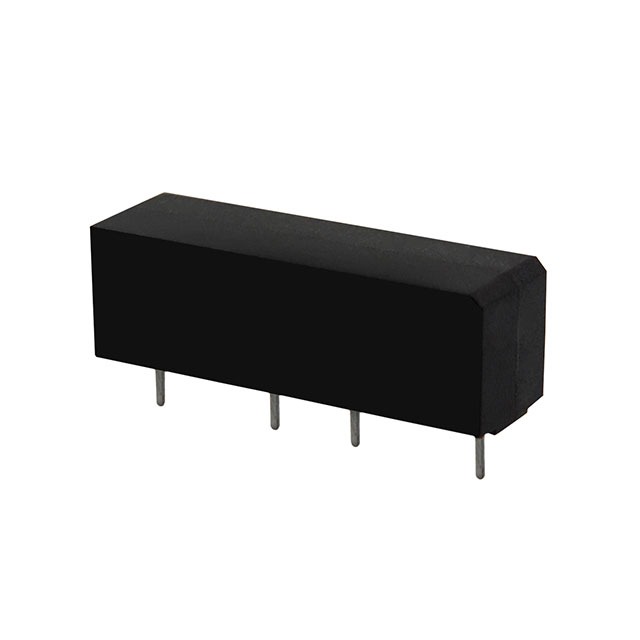

| Manufacturer | Standex-Meder Electronics |
| Series | SHV |
| Packaging | Tube |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 1 A |
| Switching Voltage | 1000VAC, 1000VDC – Max |
| Coil Current | 24 mA |
| Coil Type | Non Latching |
| Features | Diode |
| Termination Style | PC Pin |
| Seal Rating | – |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.8 VDC |
| Operate Time | 1.1 ms |
| Release Time | 0.1 ms |
| Operating Temperature | -40°C ~ 100°C |
| Contact Material | – |
| Coil Resistance | 500 Ohms |
