Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

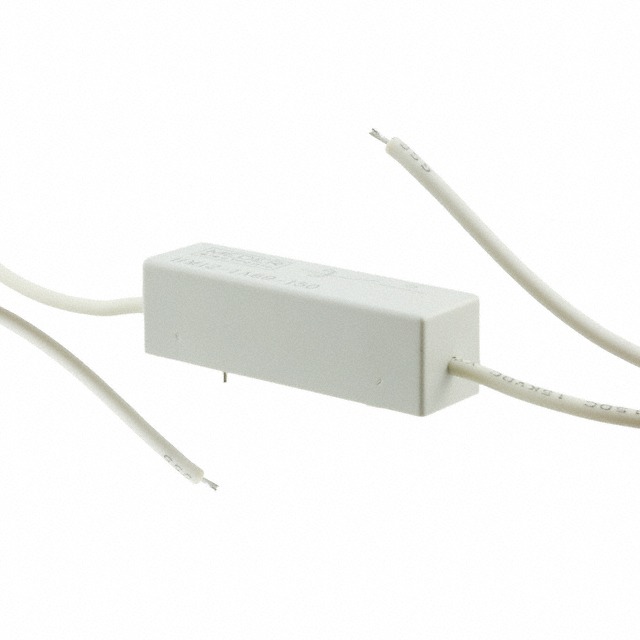

| Manufacturer | Standex-Meder Electronics |
| Series | HM |
| Packaging | Bulk |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 3 A |
| Switching Voltage | 10000VAC, 10000VDC – Max |
| Coil Current | 80 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | – |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1 VDC |
| Operate Time | 3 ms |
| Release Time | 1.5 ms |
| Operating Temperature | -20°C ~ 70°C |
| Contact Material | – |
| Coil Resistance | 150 Ohms |
| Base Product Number | HM12 |
