Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

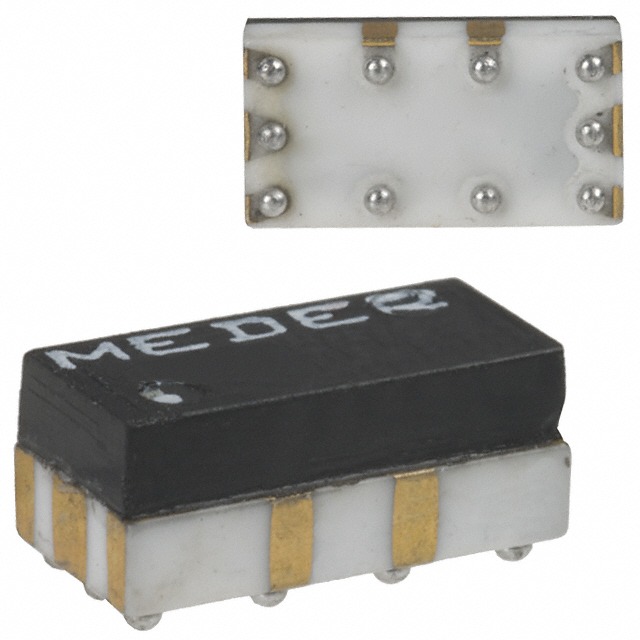

| Manufacturer | Standex-Meder Electronics |
| Series | CRR |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Coil Voltage | 5VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 500 mA |
| Switching Voltage | 170VAC, 170VDC – Max |
| Coil Current | 33.3 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | BGA |
| Seal Rating | – |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.75 VDC |
| Operate Time | 0.6 ms |
| Release Time | 0.05 ms |
| Operating Temperature | -40°C ~ 125°C |
| Contact Material | – |
| Coil Resistance | 150 Ohms |
