Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Stackpole Electronics Inc |
| Series | RAVF |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Circuit Type | Isolated |
| Resistance (Ohms) | 10k |
| Tolerance | ±5% |
| Number of Resistors | 2 |
| Resistor Matching Ratio | – |
| Resistor-Ratio-Drift | – |
| Number of Pins | 4 |
| Power Per Element | 62.5mW |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Grade | – |
| Qualification | – |
| Applications | – |
| Mounting Type | Surface Mount |

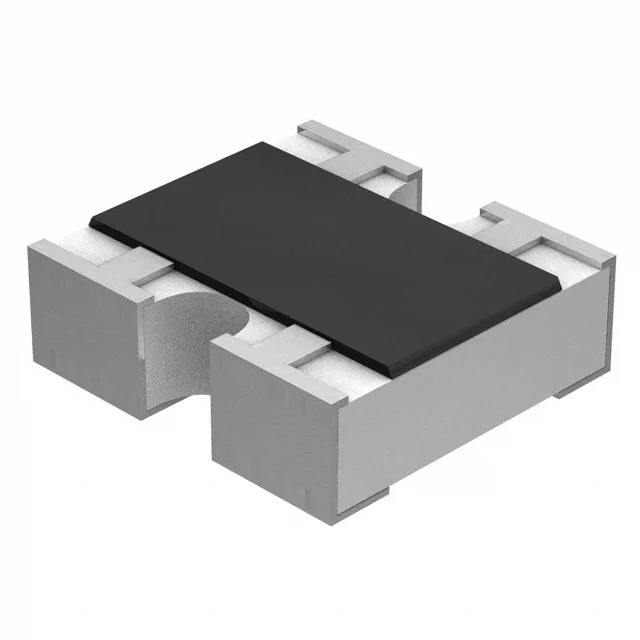

| Package / Case | 0606 (1616 Metric), Convex, Long Side Terminals |
| Supplier Device Package | – |
| Size / Dimension | 0.063″ L x 0.063″ W (1.60mm x 1.60mm) |
| Height – Seated (Max) | 0.026″ (0.65mm) |
