| ÖZELLİK | AÇIKLAMA |
|---|---|

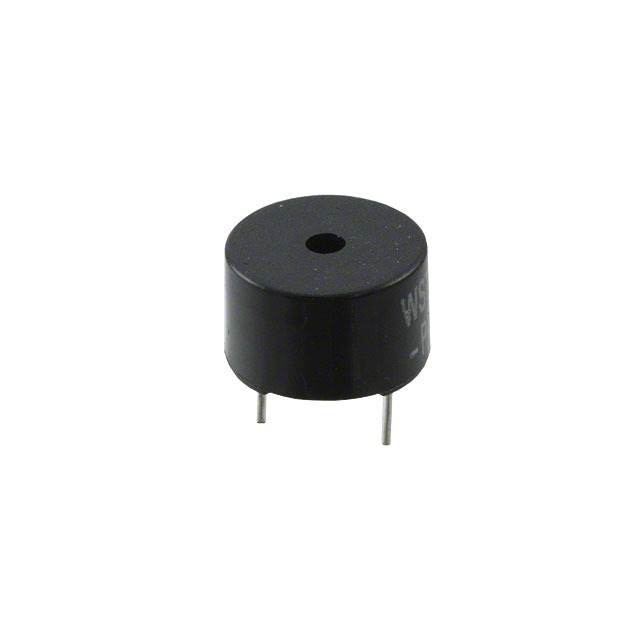

| Manufacturer | Soberton Inc. |
| Series | WST |
| Packaging | Tray |
| Part Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | Zero-Peak Signal |
| Voltage – Rated | 5 V |
| Voltage Range | 3 ~ 7V |
| Frequency | 2.3kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | – |
| Sound Pressure Level (SPL) | 83dB @ 5V, 10cm |
| Current – Supply | 30mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | – |
| Ratings | Washable |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.472″ Dia (12.00mm) |
| Height – Seated (Max) | 0.303″ (7.70mm) |
