| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Skyworks Solutions Inc. |
| Series | Si535 |
| Packaging | Strip |
| Part Status | Active |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 156.25 MHz |
| Function | Enable/Disable |
| Output | LVDS |
| Voltage – Supply | 2.5V |
| Frequency Stability | ±20ppm |
| Absolute Pull Range (APR) | – |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | – |
| Current – Supply (Max) | 98mA |
| Ratings | – |
| Mounting Type | Surface Mount |

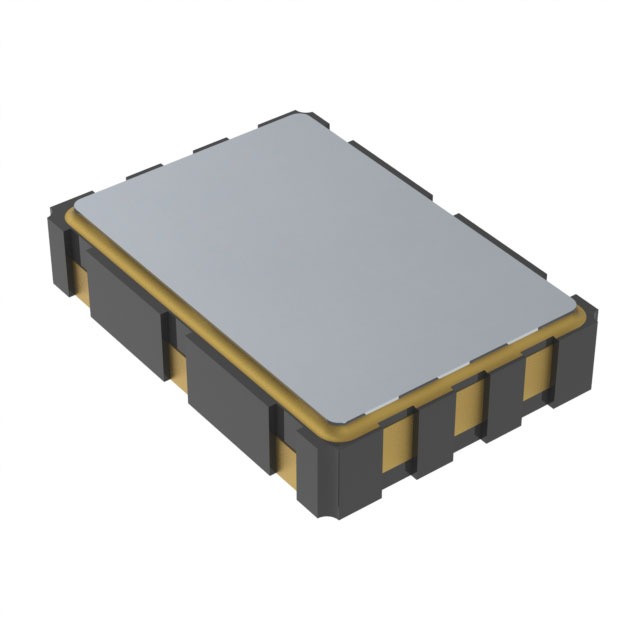

| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.276″ L x 0.197″ W (7.00mm x 5.00mm) |
| Height – Seated (Max) | 0.071″ (1.80mm) |
| Current – Supply (Disable) (Max) | 75mA |
| Base Product Number | 535FB |
