Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Skyworks Solutions Inc. |
| Series | Si511 |
| Packaging | Strip |
| Part Status | Active |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) |
| Available Frequency Range | 170 MHz ~ 250 MHz |
| Function | Enable/Disable |
| Output | LVDS |
| Voltage – Supply | 2.5V |
| Frequency Stability | ±25ppm |
| Frequency Stability (Total) | ±50ppm |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | – |
| Current – Supply (Max) | 23mA |
| Ratings | – |
| Mounting Type | Surface Mount |

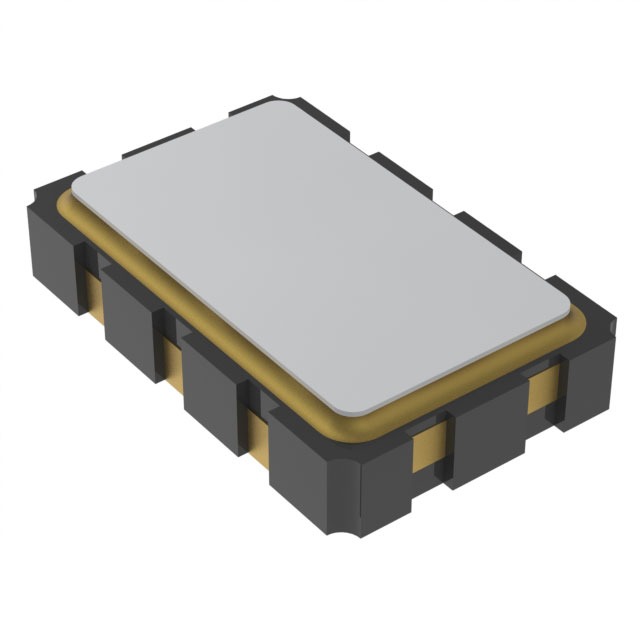

| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.197″ L x 0.126″ W (5.00mm x 3.20mm) |
| Height – Seated (Max) | 0.050″ (1.28mm) |
| Current – Supply (Disable) (Max) | 18 mA |
| Base Product Number | 511FBA |
