Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Silicon Labs |
| Series | C8051F04x |
| Packaging | Tray |
| Part Status | Not For New Designs |
| DigiKey Programmable | Verified |
| Core Processor | 8051 |
| Core Size | 8-Bit |
| Speed | 25MHz |
| Connectivity | CANbus, EBI/EMI, SMBus (2-Wire/I2C), SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT |
| Number of I/O | 64 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | – |
| RAM Size | 4.25K x 8 |
| Voltage – Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Data Converters | A/D 8x8b, 13x12b; D/A 2x10b, 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

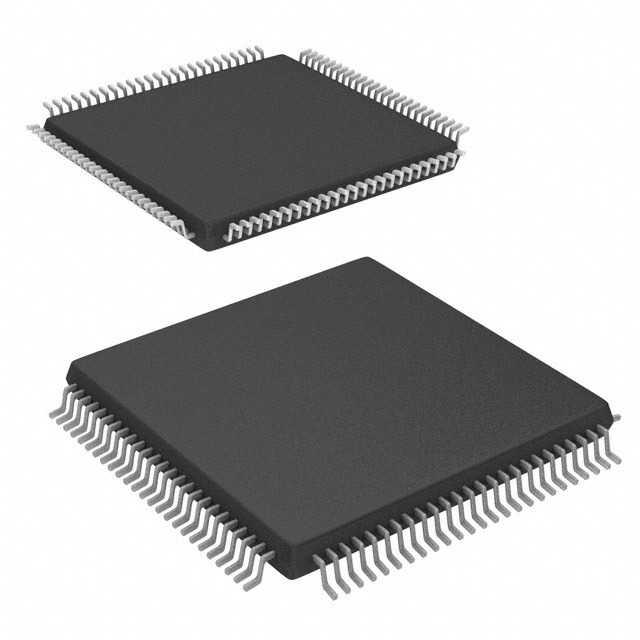

| Supplier Device Package | 100-TQFP (14×14) |
| Package / Case | 100-TQFP |
| Base Product Number | C8051F040 |
