Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

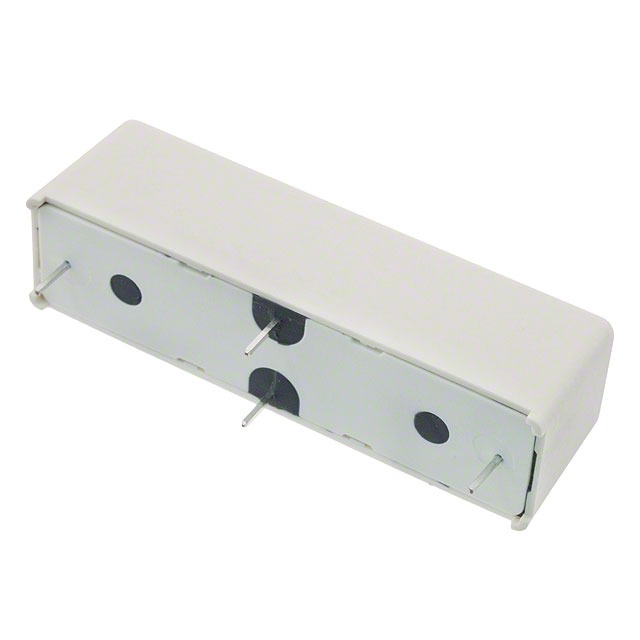

| Manufacturer | Sensata Technologies, Inc. |
| Series | DA |
| Packaging | Tray |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 7000VAC, 7000VDC – Max |
| Coil Current | 179 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | – |
| Must Operate Voltage | 3.7 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 3 ms |
| Release Time | 2 ms |
| Operating Temperature | -20°C ~ 70°C |
| Contact Material | Tungsten (W) |
| Coil Resistance | 28 Ohms |
