Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

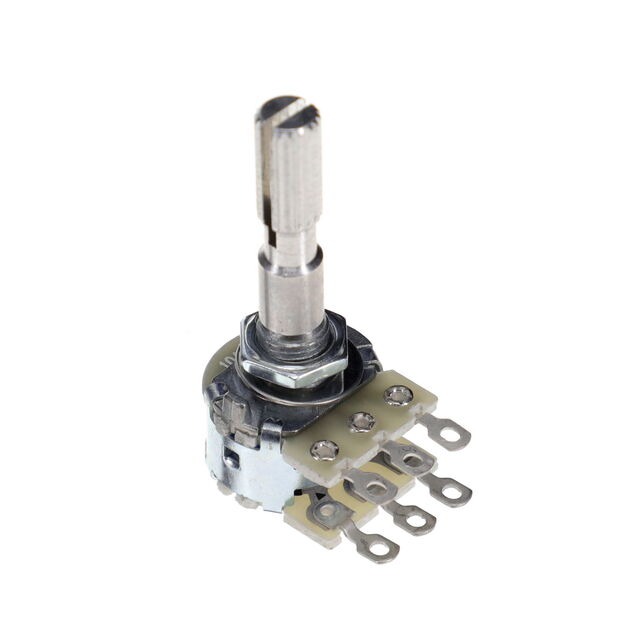

| Manufacturer | Same Sky (Formerly CUI Devices) |
| Series | PTN16 |
| Packaging | Tray |
| Part Status | Active |
| Resistance (Ohms) | 100k |
| Tolerance | ±20% |
| Power (Watts) | 0.125W, 1/8W |
| Built in Switch | Detent |
| Number of Turns | 1.0 |
| Features | – |
| Taper | Logarithmic |
| Number of Gangs | 2 |
| Adjustment Type | Side Adjustment |
| Temperature Coefficient | – |
| Rotation | 305° |
| Resistive Material | Carbon |
| Termination Style | PC Pins |
| Actuator Type | Knurled and Slotted |
| Actuator Length | 1.181″ (30.00mm) |
| Actuator Diameter | 0.236″ (6.00mm) |
| Bushing Thread | M7 x 0.75 |
| Mounting Type | Through Hole |
| Size – Body | Round – 0.669″ Dia (17.00mm) |
