Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

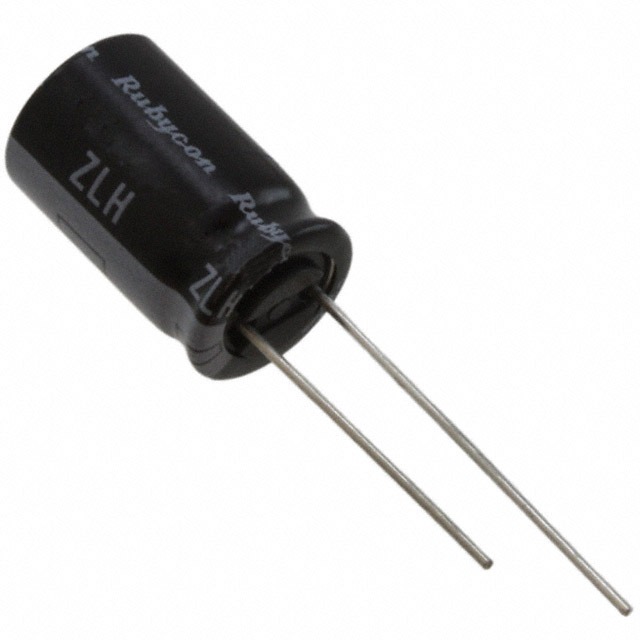

| Mfr | Rubycon |
| Series | ZLH |
| Packaging | Bulk |
| Part Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage – Rated | 35 V |
| ESR (Equivalent Series Resistance) | – |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | – |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 968 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.76 A @ 100 kHz |
| Impedance | 28 mOhms |
| Lead Spacing | 0.197″ (5.00mm) |
| Size / Dimension | 0.394″ Dia (10.00mm) |
| Height – Seated (Max) | 0.689″ (17.50mm) |
| Surface Mount Land Size | – |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
