Açıklama

ÖZELLİK	AÇIKLAMA

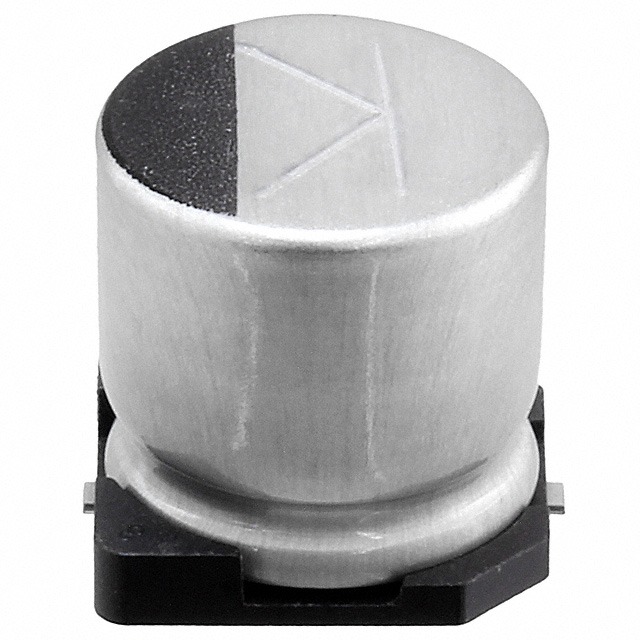

Mfr	Rubycon
Series	TLV
Packaging	Tape & Reel (TR), Cut Tape (CT), Digi-Reel®
Part Status	Active
Capacitance	470 µF
Tolerance	±20%
Voltage – Rated	25 V
ESR (Equivalent Series Resistance)	–
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	510 mA @ 120 Hz
Ripple Current @ High Frequency	850 mA @ 100 kHz
Impedance	80 mOhms
Lead Spacing	–
Size / Dimension	0.394″ Dia (10.00mm)
Height – Seated (Max)	0.413″ (10.50mm)
Surface Mount Land Size	0.406″ L x 0.406″ W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can – SMD
