Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Series | RZ/G2L |
| Packaging | Tray |
| Part Status | Active |
| Core Processor | ARM® Cortex®-A55, ARM® Cortex®-M33 |
| Number of Cores/Bus Width | 3 Core, 64-Bit |
| Speed | 200MHz, 1.2GHz |
| Co-Processors/DSP | ARM® Mali-G31 |
| RAM Controllers | DDR3L, DDR4 |
| Graphics Acceleration | No |
| Display & Interface Controllers | MIPI-CSI, MIPI-DSI |
| Ethernet | 10/100/1000Mbps (2) |
| SATA | – |
| USB | USB 2.0 (2) |
| Voltage – I/O | 1.8V, 3.3V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Security Features | – |
| Mounting Type | Surface Mount |

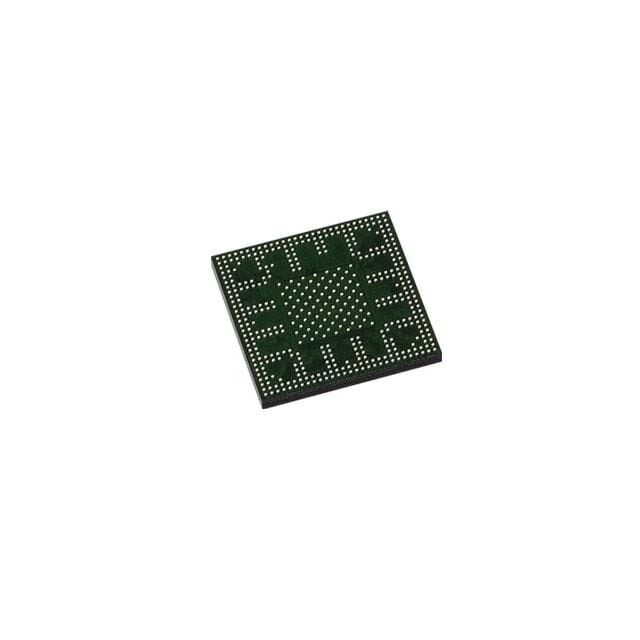

| Package / Case | 456-LFBGA |
| Supplier Device Package | 456-LFBGA (15×15) |
| Additional Interfaces | CANbus, eMMC/SD/SDIO, I2C, SPI, UART |
| Base Product Number | R9A07 |
