Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Series | RZ/G2UL |
| Packaging | Tray |
| Part Status | Active |
| Core Processor | ARM® Cortex®-A7 |
| Number of Cores/Bus Width | 1 Core, 64-Bit |
| Speed | 1GHz |
| Co-Processors/DSP | ARM® Cortex®-M33 |
| RAM Controllers | DDR3L, DDR4 |
| Graphics Acceleration | No |
| Display & Interface Controllers | LCD |
| Ethernet | 10/100/1000Mbps (2) |
| SATA | – |
| USB | USB 2.0 OTG (2) |
| Voltage – I/O | 3.3V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Security Features | AES, ARM TZ, ECC, GHASH, RSA, Secure boot, SHA-1, SHA-224, SHA-256, TRNG |
| Mounting Type | Surface Mount |

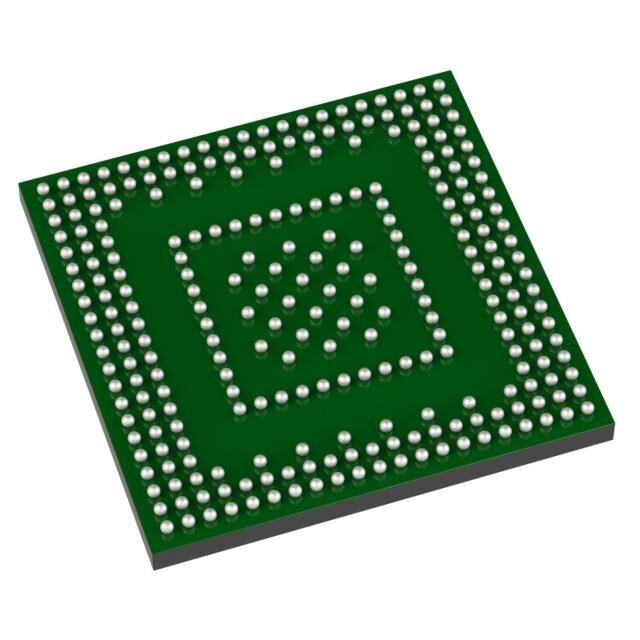

| Package / Case | 361-LFBGA |
| Supplier Device Package | 361-BGA (13×13) |
| Additional Interfaces | CANbus, DMA, Ethernet, GPIO, I2C, I2S, MMC/SD/SDIO, QSPI, SCI |
