Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Series | RZ/A1L |
| Packaging | Tray |
| Part Status | Active |
| Core Processor | ARM® Cortex®-A9 |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 400MHz |
| Co-Processors/DSP | Multimedia; NEON™ MPE |
| RAM Controllers | SDRAM, SRAM |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | VDC |
| Ethernet | 10/100Mbps |
| SATA | – |
| USB | USB 2.0 (2) |
| Voltage – I/O | 1.2V, 3.3V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Security Features | – |
| Mounting Type | Surface Mount |

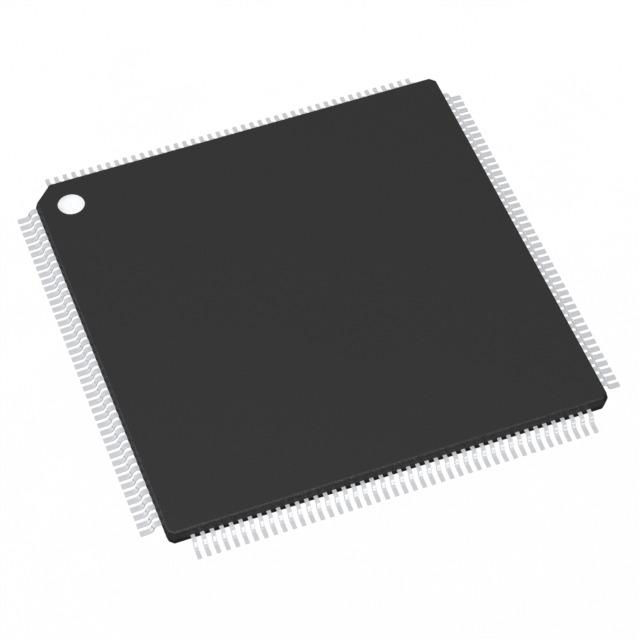

| Package / Case | 176-LQFP |
| Supplier Device Package | 176-LFQFP (24×24) |
| Additional Interfaces | CAN, I2C, IEBus, IrDA, LIN, MediaLB, MMC/SD/SDIO, SCI, SCI FIFO, SPDIF, SPI, SSI |
| Base Product Number | R7S721020 |
