Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Renesas Electronics Corporation |
| Series | RA8M1 |
| Packaging | Tray |
| Part Status | Active |
| Core Processor | ARM® Cortex®-M85 |
| Core Size | 32-Bit |
| Speed | 480MHz |
| Connectivity | CANbus, Ethernet, I2C, MMC/SD, QSPI, SCI, Serial Sound, SmartCard, SPI, UART/USART, USB |
| Peripherals | AES, DMA, LVD, POR, PWM, RSA, Temp Sensor, WDT |
| Number of I/O | 174 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 12K x 8 |
| RAM Size | 1M x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.65V ~ 3.6V |
| Data Converters | A/D 25x12b SAR; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |

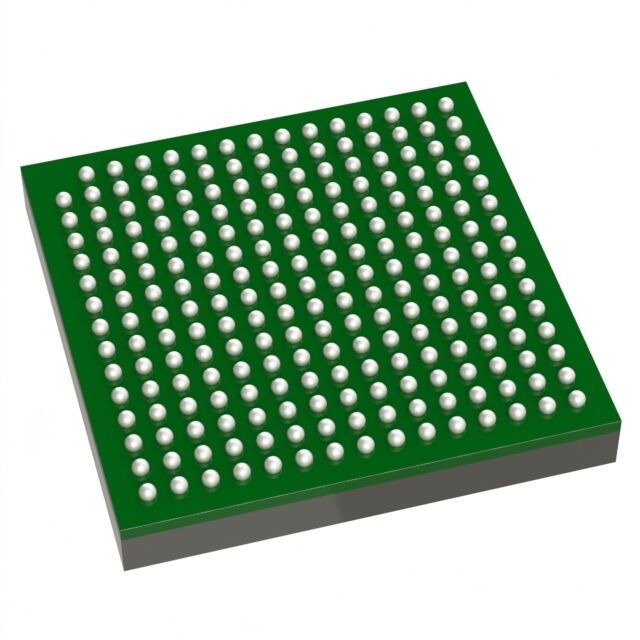

| Supplier Device Package | 224-BGA (13×13) |
| Package / Case | 224-LFBGA |
| Base Product Number | R7FA8M1 |
