Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Series | – |
| Packaging | Tube |
| Part Status | Last Time Buy |
| Switch Circuit | – |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 750mOhm |
| Channel-to-Channel Matching (ΔRon) | 120mOhm |
| Voltage – Supply, Single (V+) | 1.6V ~ 3.6V |
| Voltage – Supply, Dual (V±) | – |
| Switch Time (Ton, Toff) (Max) | 25ns, 23ns |
| -3db Bandwidth | – |
| Charge Injection | -39pC |
| Channel Capacitance (CS(off), CD(off)) | 65pF, 470pF |
| Current – Leakage (IS(off)) (Max) | 4nA |
| Crosstalk | – |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

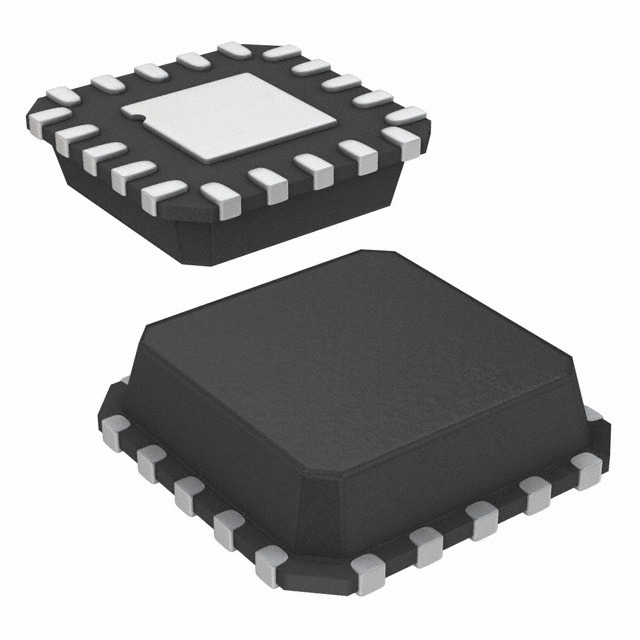

| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-TQFN (3×3) |
| Base Product Number | ISL84781 |
