Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 400mOhm (Typ) |
| Channel-to-Channel Matching (ΔRon) | 50mOhm |
| Voltage – Supply, Single (V+) | 1.65V ~ 4.5V |
| Voltage – Supply, Dual (V±) | – |
| Switch Time (Ton, Toff) (Max) | 33ns, 16ns |
| -3db Bandwidth | – |
| Charge Injection | 248pC |
| Channel Capacitance (CS(off), CD(off)) | 38pF |
| Current – Leakage (IS(off)) (Max) | 70nA |
| Crosstalk | -85dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

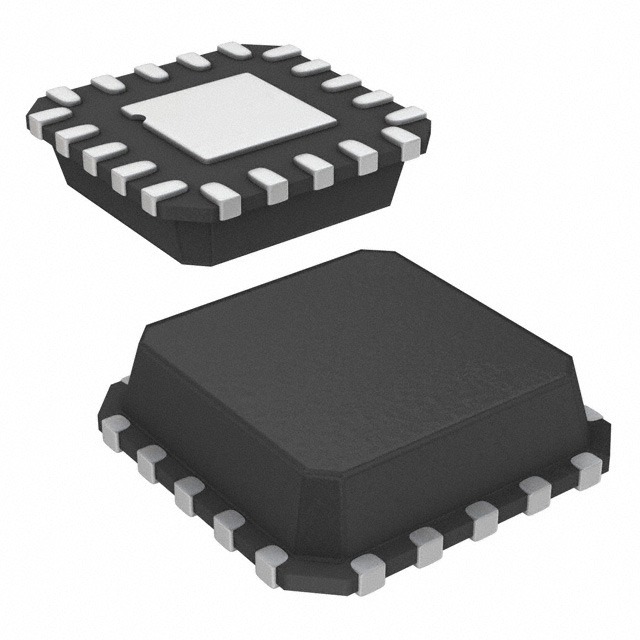

| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-TQFN (3×3) |
| Base Product Number | ISL84467 |
