Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Series | – |
| Packaging | Tube |
| Part Status | Last Time Buy |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 520mOhm (Typ) |
| Channel-to-Channel Matching (ΔRon) | 10mOhm |
| Voltage – Supply, Single (V+) | 1.8V ~ 6.5V |
| Voltage – Supply, Dual (V±) | – |
| Switch Time (Ton, Toff) (Max) | 35ns, 16ns |
| -3db Bandwidth | 60MHz |
| Charge Injection | 170pC |
| Channel Capacitance (CS(off), CD(off)) | 36pF |
| Current – Leakage (IS(off)) (Max) | 8.13nA |
| Crosstalk | -75dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

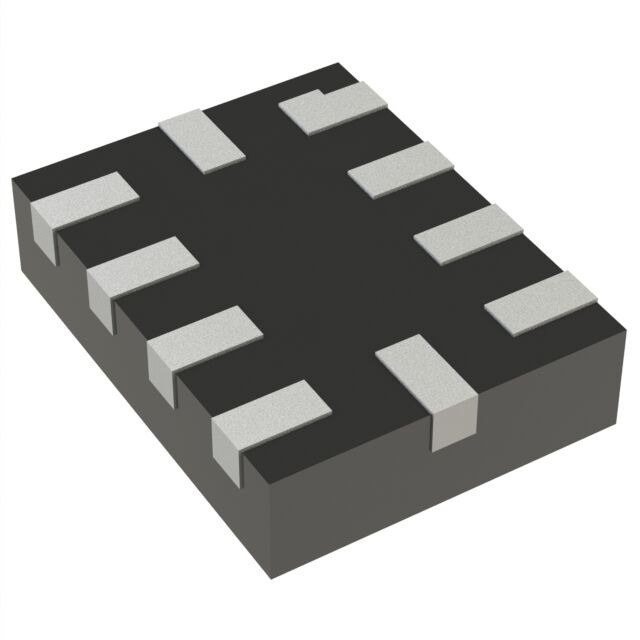

| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-TDFN (3×3) |
| Base Product Number | ISL54059 |
