Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

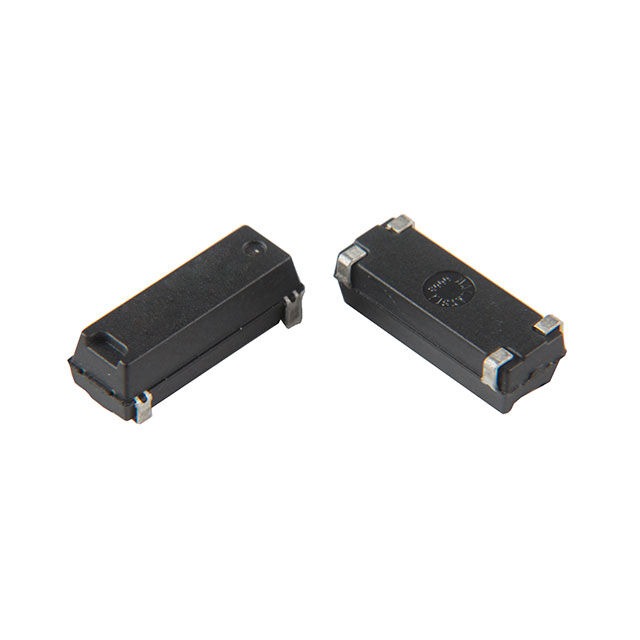

| Mfr | Raltron Electronics |
| Series | TT-SMDC |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Type | MHz Crystal |
| Frequency | 8 MHz |
| Frequency Stability | ±50ppm |
| Frequency Tolerance | ±30ppm |
| Load Capacitance | 18pF |
| ESR (Equivalent Series Resistance) | 100 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | – |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOJ, 9.40mm pitch |
| Size / Dimension | 0.492″ L x 0.181″ W (12.50mm x 4.60mm) |
| Height – Seated (Max) | 0.146″ (3.70mm) |
