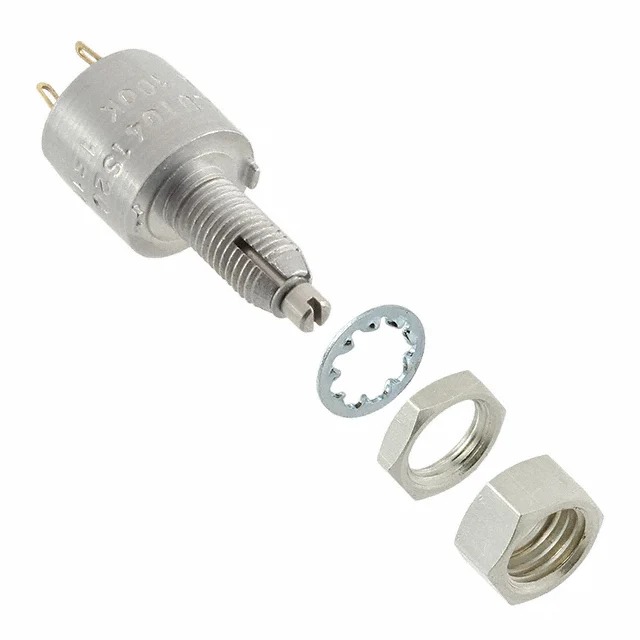

Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Precision Electronics Corporation |
| Series | RV6 |
| Packaging | Bulk |
| Part Status | Active |
| Resistance (Ohms) | 50k |
| Tolerance | ±10% |
| Power (Watts) | 0.5W, 1/2W |
| Built in Switch | None |
| Number of Turns | 1.0 |
| Features | – |
| Taper | Linear |
| Number of Gangs | 1 |
| Adjustment Type | User Defined |
| Temperature Coefficient | – |
| Rotation | 295° |
| Resistive Material | Carbon |
| Termination Style | Solder Lug |
| Actuator Type | Slotted |
| Actuator Length | 0.625″ (15.88mm) |
| Actuator Diameter | 0.125″ (3.18mm) |
| Bushing Thread | 1/4-32 |
| Mounting Type | Panel Mount |
| Size – Body | Round – 0.510″ Dia (12.95mm) |
