Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Series | EXB |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Circuit Type | Isolated |
| Resistance (Ohms) | 82k |
| Tolerance | ±5% |
| Number of Resistors | 4 |
| Resistor Matching Ratio | – |
| Resistor-Ratio-Drift | – |
| Number of Pins | 8 |
| Power Per Element | 63mW |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Grade | Automotive |
| Qualification | AEC-Q200 |
| Applications | – |
| Mounting Type | Surface Mount |

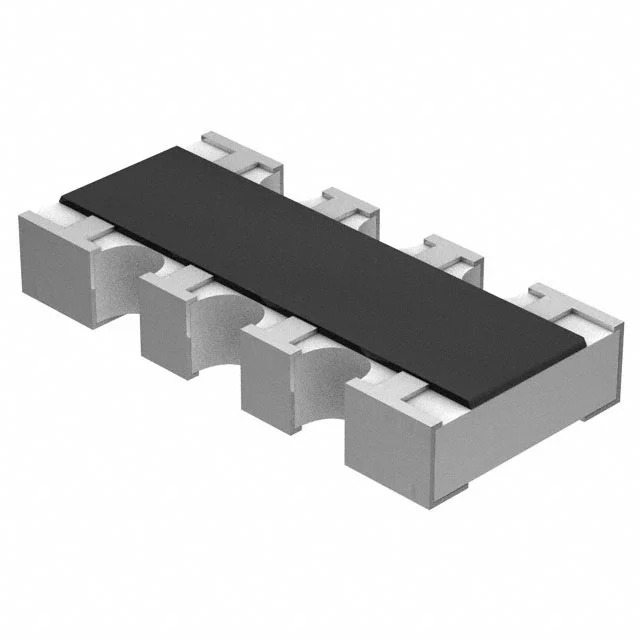

| Package / Case | 1206 (3216 Metric), Convex, Long Side Terminals |
| Supplier Device Package | 1206 |
| Size / Dimension | 0.126″ L x 0.063″ W (3.20mm x 1.60mm) |
| Height – Seated (Max) | 0.024″ (0.60mm) |
| Base Product Number | EXB-U3 |
