Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

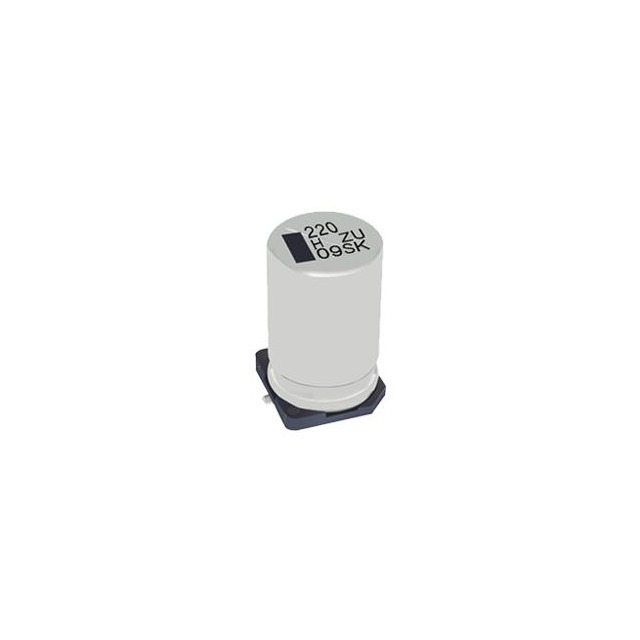

| Manufacturer | Panasonic Electronic Components |
| Series | ZU |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Type | Hybrid |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage – Rated | 50 V |
| ESR (Equivalent Series Resistance) | 10mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 135°C |
| Operating Temperature | -55°C ~ 135°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 780 mA @ 100 Hz |
| Ripple Current @ High Frequency | 5.2 A @ 100 kHz |
| Lead Spacing | – |
| Size / Dimension | 0.394″ Dia (10.00mm) |
| Height – Seated (Max) | 0.661″ (16.80mm) |
| Surface Mount Land Size | 0.406″ L x 0.406″ W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can – SMD |
| Base Product Number | EEH-ZU |
