Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

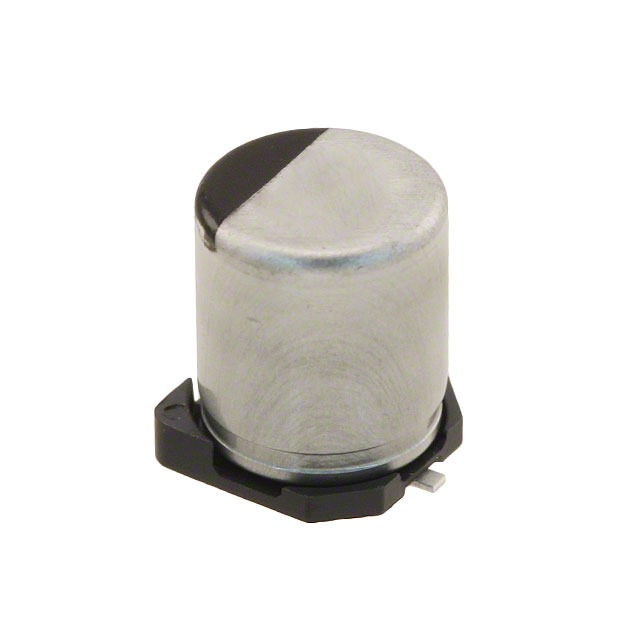

| Manufacturer | Panasonic Electronic Components |
| Series | ZC |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Type | Hybrid |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage – Rated | 50 V |
| ESR (Equivalent Series Resistance) | 40mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | – |
| Ripple Current @ Low Frequency | 110 mA @ 100 Hz |
| Ripple Current @ High Frequency | 1.1 A @ 100 kHz |
| Lead Spacing | – |
| Size / Dimension | 0.248″ Dia (6.30mm) |
| Height – Seated (Max) | 0.315″ (8.00mm) |
| Surface Mount Land Size | 0.260″ L x 0.260″ W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can – SMD |
| Base Product Number | EEH-ZC |
