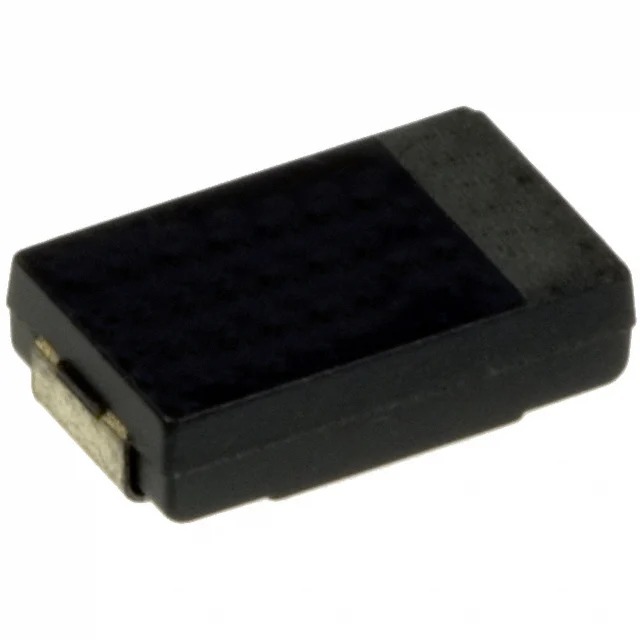

Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Series | SP-Cap CX |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Type | Polymer |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage – Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 15mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | – |
| Applications | General Purpose |
| Ripple Current @ High Frequency | 5.1 A @ 100 kHz |
| Lead Spacing | – |
| Size / Dimension | 0.287″ L x 0.169″ W (7.30mm x 4.30mm) |
| Height – Seated (Max) | 0.075″ (1.90mm) |
| Surface Mount Land Size | 0.287″ L x 0.169″ W (7.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
| Base Product Number | EEF-CX |
