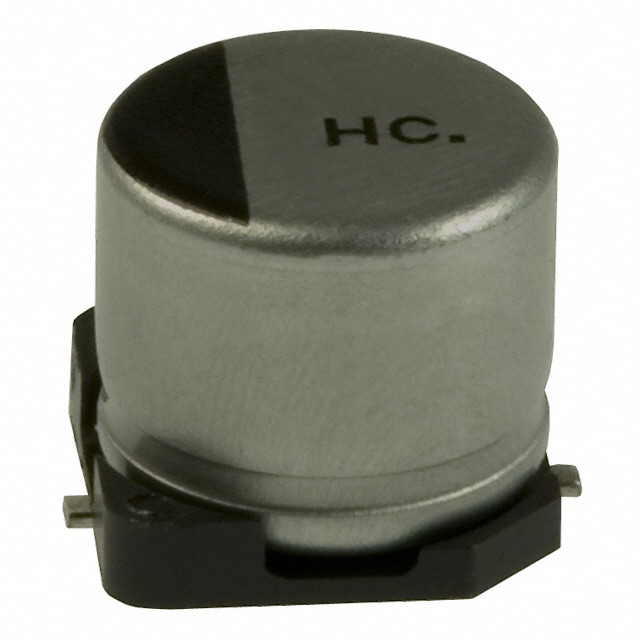

Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Panasonic Electronic Components |
| Series | HC |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage – Rated | 16 V |
| ESR (Equivalent Series Resistance) | – |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 70 mA @ 120 Hz |
| Ripple Current @ High Frequency | 119 mA @ 10 kHz |
| Lead Spacing | – |
| Size / Dimension | 0.248″ Dia (6.30mm) |
| Height – Seated (Max) | 0.228″ (5.80mm) |
| Surface Mount Land Size | 0.260″ L x 0.260″ W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can – SMD |
| Base Product Number | EEE-HC |
