Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

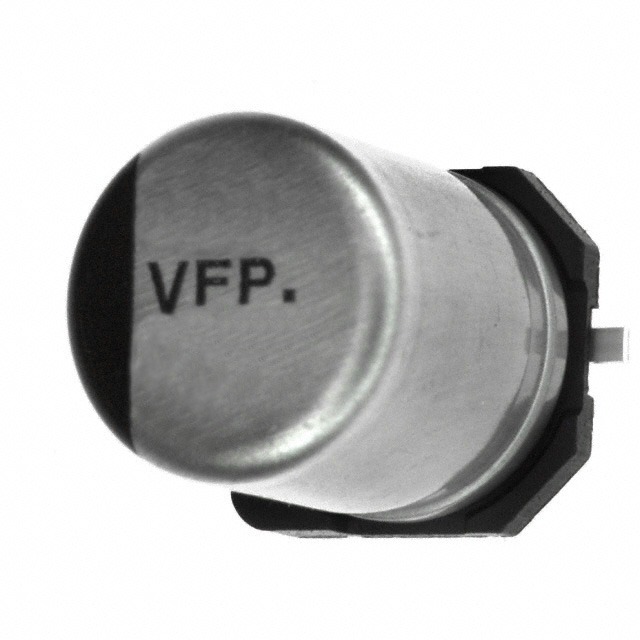

| Mfr | Panasonic Electronic Components |
| Series | FP |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage – Rated | 35 V |
| ESR (Equivalent Series Resistance) | 80mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 552.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Lead Spacing | – |
| Size / Dimension | 0.315″ Dia (8.00mm) |
| Height – Seated (Max) | 0.402″ (10.20mm) |
| Surface Mount Land Size | 0.327″ L x 0.327″ W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can – SMD |
| Base Product Number | EEE-FP |
