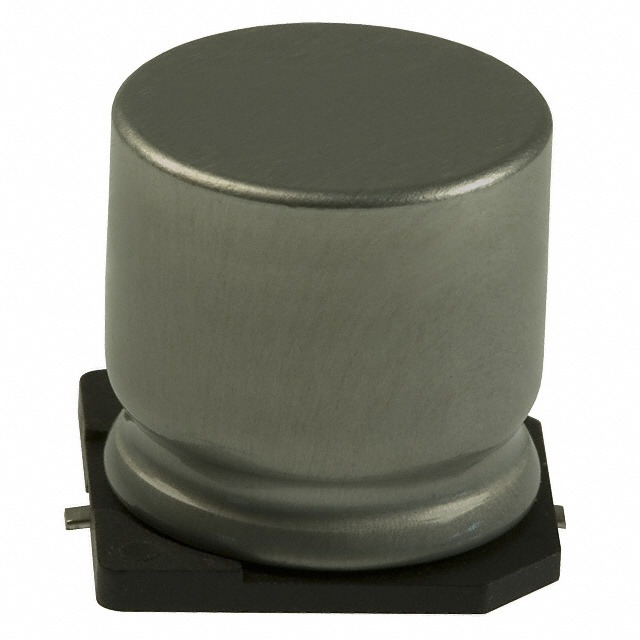

Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Panasonic Electronic Components |
| Series | FK |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage – Rated | 25 V |
| ESR (Equivalent Series Resistance) | – |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, High Temperature Reflow |
| Ripple Current @ Low Frequency | 1.35 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.8 A @ 100 kHz |
| Impedance | 35 mOhms |
| Lead Spacing | – |
| Size / Dimension | 0.630″ Dia (16.00mm) |
| Height – Seated (Max) | 0.669″ (17.00mm) |
| Surface Mount Land Size | 0.669″ L x 0.669″ W (17.00mm x 17.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can – SMD |
| Base Product Number | EEE-FK |
