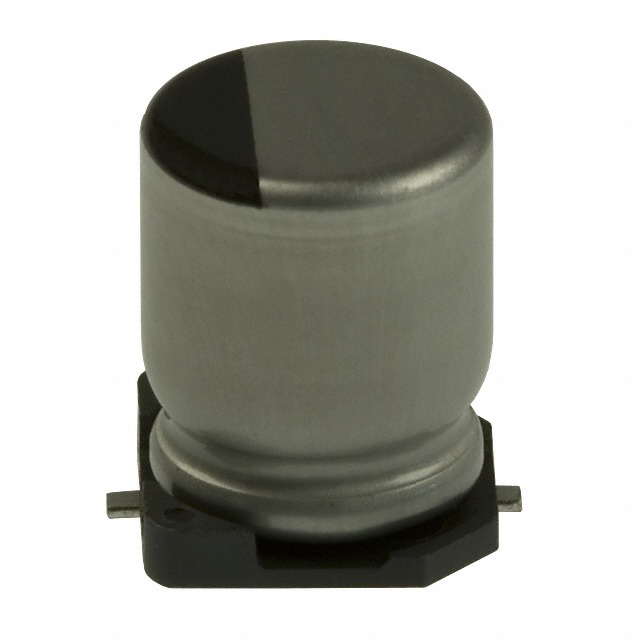

Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Panasonic Electronic Components |
| Series | S |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Not For New Designs |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage – Rated | 63 V |
| ESR (Equivalent Series Resistance) | – |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 45 mA @ 120 Hz |
| Ripple Current @ High Frequency | 76.5 mA @ 10 kHz |
| Lead Spacing | – |
| Size / Dimension | 0.315″ Dia (8.00mm) |
| Height – Seated (Max) | 0.402″ (10.20mm) |
| Surface Mount Land Size | 0.327″ L x 0.327″ W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can – SMD |
| Base Product Number | EEE-1JA |
