| ÖZELLİK | AÇIKLAMA |
|---|---|

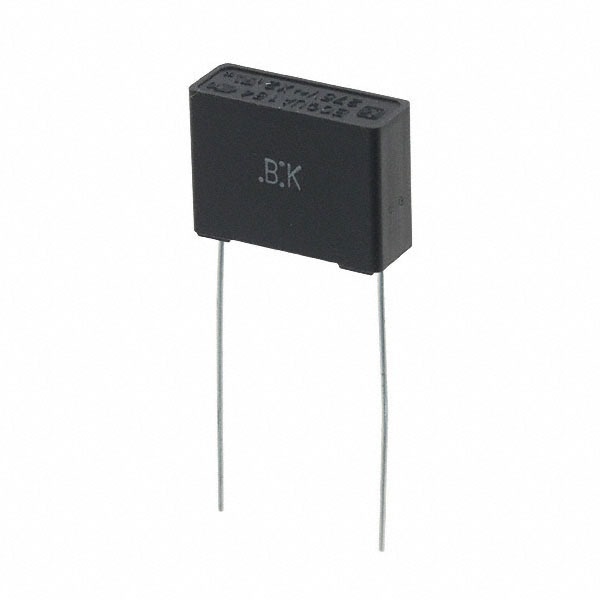

| Mfr | Panasonic Electronic Components |
| Series | ECQ-UA |
| Packaging | Bulk |
| Part Status | Obsolete |
| Capacitance | 0.15 µF |
| Tolerance | ±10% |
| Voltage Rating – AC | 275V |
| Voltage Rating – DC | – |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.689″ L x 0.236″ W (17.50mm x 6.00mm) |
| Height – Seated (Max) | 0.532″ (13.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591″ (15.00mm) |
| Applications | EMI, RFI Suppression |
| Ratings | X2 |
| Features | – |
| Base Product Number | ECQ-UAAF154 |
