Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

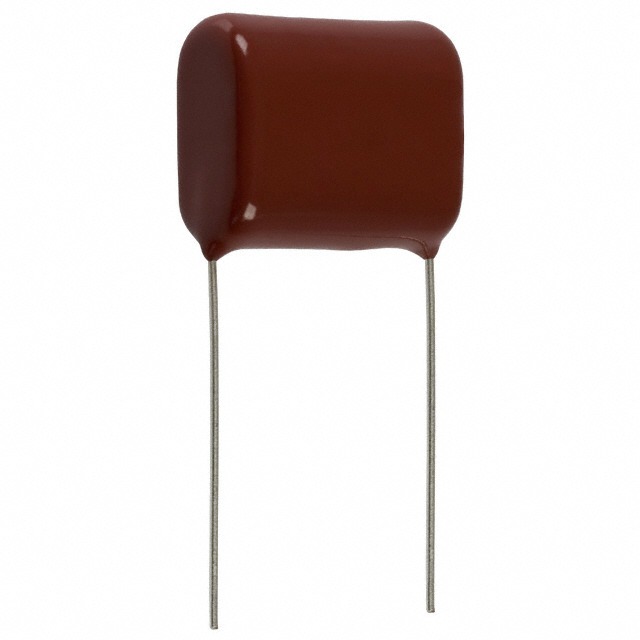

| Mfr | Panasonic Electronic Components |
| Series | ECQ-E(F) |
| Packaging | Bulk |
| Part Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±5% |
| Voltage Rating – AC | – |
| Voltage Rating – DC | 250V |
| Dielectric Material | Polyester, Metallized |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.024″ L x 0.472″ W (26.00mm x 12.00mm) |
| Height – Seated (Max) | 0.906″ (23.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886″ (22.50mm) |
| Applications | General Purpose |
| Ratings | – |
| Features | – |
| Base Product Number | ECQ-E2475 |
