Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

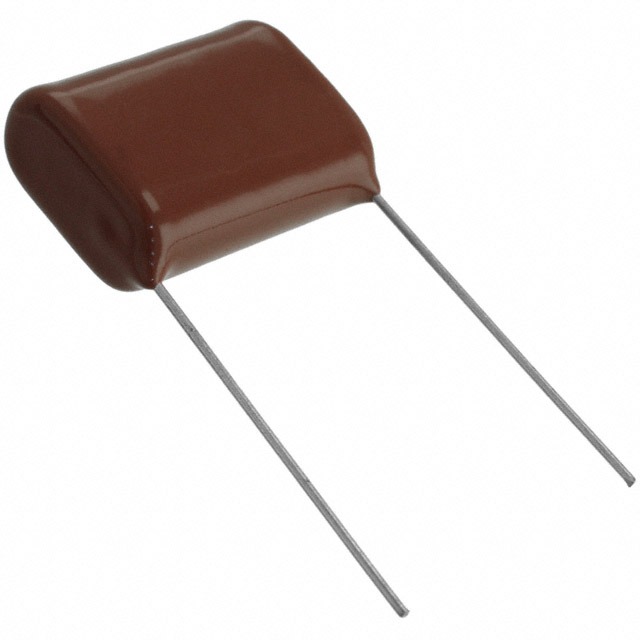

| Mfr | Panasonic Electronic Components |
| Series | ECQ-E(F) |
| Packaging | Bulk |
| Part Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±10% |
| Voltage Rating – AC | – |
| Voltage Rating – DC | 100V |
| Dielectric Material | Polyester, Metallized |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.024″ L x 0.453″ W (26.00mm x 11.50mm) |
| Height – Seated (Max) | 1.024″ (26.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591″ (15.00mm) |
| Applications | General Purpose |
| Ratings | – |
| Features | – |
| Base Product Number | ECQ-E1 |
