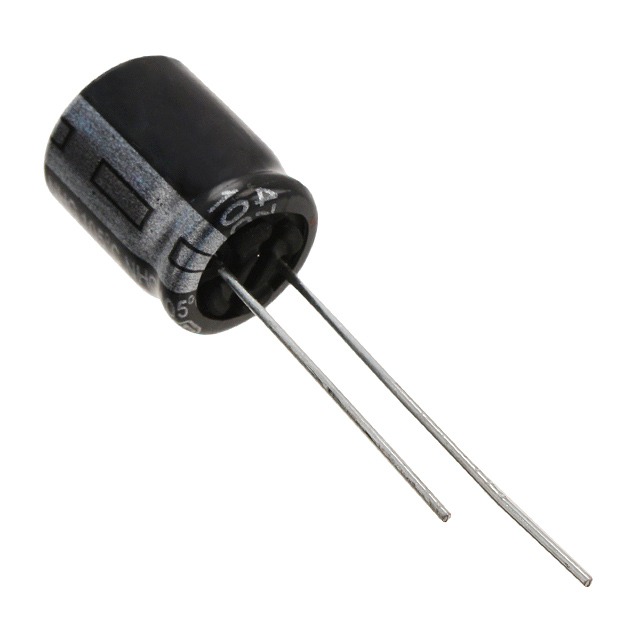

Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Panasonic Electronic Components |
| Series | NHG-A |
| Packaging | Bulk |
| Part Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage – Rated | 450 V |
| ESR (Equivalent Series Resistance) | – |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | – |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 49 mA @ 120 Hz |
| Ripple Current @ High Frequency | 73.5 mA @ 100 kHz |
| Lead Spacing | 0.197″ (5.00mm) |
| Size / Dimension | 0.394″ Dia (10.00mm) |
| Height – Seated (Max) | 0.866″ (22.00mm) |
| Surface Mount Land Size | – |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | ECA-2WH |
